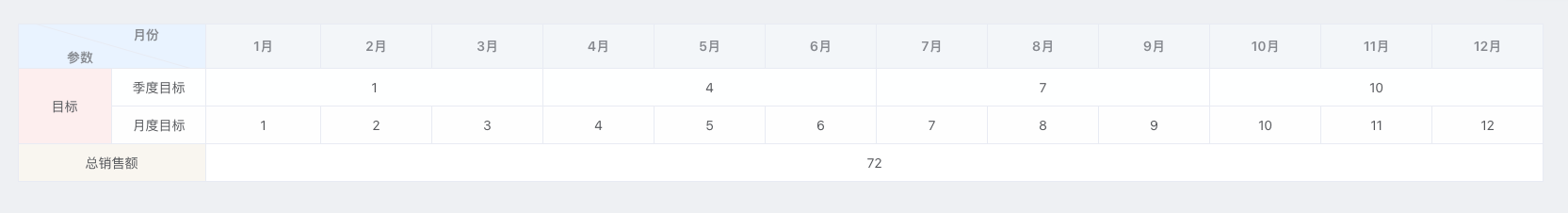

Appearance

html
<template>
<div style="padding: 20px;">
<el-table
:data="tableData"
border
:header-cell-style="head"
:span-method="objectSpanMethod"
:cell-class-name="tableCellClassName"
:header-cell-class-name="tableHeaderCellClassName">
<el-table-column>
<template #header="">
<div class="first-head">
<div class="month">月份</div>
<div class="line"></div>
<div class="arg">参数</div>
</div>
</template>
<el-table-column prop="arg1" width="100" align="center" />
<el-table-column prop="arg2" width="100" align="center" />
</el-table-column>
<el-table-column v-for="(item, index) in tableHead" :key="index" :label="item" :prop="item" align="center">
<template #default="scope">
<div class="p-x-10px">{{ scope.$index < 2 ? scope.row[item] : '72' }}</div>
</template>
</el-table-column>
</el-table>
</div>
</template>
<script setup lang='ts'>
/* ------------------------ 导入 与 引用 ----------------------------------- */
import { ref } from 'vue'
const tableHead = ['1月', '2月', '3月', '4月', '5月', '6月', '7月', '8月', '9月', '10月', '11月', '12月']
const tableData = ref([
{
arg1: '目标',
arg2: '季度目标',
'1月': 1,
'2月': 2,
'3月': 3,
'4月': 4,
'5月': 5,
'6月': 6,
'7月': 7,
'8月': 8,
'9月': 9,
'10月': 10,
'11月': 11,
'12月': 12
},
{
arg1: '目标',
arg2: '月度目标',
'1月': 1,
'2月': 2,
'3月': 3,
'4月': 4,
'5月': 5,
'6月': 6,
'7月': 7,
'8月': 8,
'9月': 9,
'10月': 10,
'11月': 11,
'12月': 12
},
{
arg1: '总销售额',
},
])
// 表头处理
const head = ({ row, column, rowIndex, columnIndex }) => {
if (rowIndex === 0) {
//这里为了是将第二列的表头隐藏,就形成了合并表头的效果
return { padding: 0 }
}
if (rowIndex === 1) {
//这里为了是将第二列的表头隐藏,就形成了合并表头的效果
return { display: 'none', padding: 0 }
}
}
// 合并处理
const objectSpanMethod = ({ row, column, rowIndex, columnIndex }) => {
// 第一行,第一二列
if (columnIndex === 0 && rowIndex < 2) {
// 第一二列单元格行合并
if (rowIndex === 0) {
return {
rowspan: 2,
colspan: 1
}
} else { // 其他这个范围内的单元格隐藏
return {
rowspan: 0,
colspan: 0
}
}
}
// 第一列
if (rowIndex === 0) {
// 从第二列开始,每隔3列合并
if (columnIndex > 1 && (columnIndex - 2) % 3 === 0) {
return {
rowspan: 1,
colspan: 3
}
} else if (columnIndex > 1) { // 从第二列开始,其他不合并的都隐藏
return {
rowspan: 0,
colspan: 0
}
}
}
// 第二列
if (rowIndex === 2) {
// 第一行,2列合并
if (columnIndex === 0) {
return [1, 2]
} else if (columnIndex === 3) { // 第三列合并为 12列
return [1, 12]
} else {
return [0, 0] // 其他这个范围内的单元格隐藏
}
}
}
// 单元格样式处理
// 表格内容
const tableCellClassName = ({ row, column, rowIndex, columnIndex }) => {
if (rowIndex === 0 && columnIndex === 0) {
return 'warning'
}
if (rowIndex === 2 && columnIndex === 0) {
return 'success'
}
}
// 表头
const tableHeaderCellClassName = ({ row, column, rowIndex, columnIndex }) => {
if (rowIndex === 0 && columnIndex === 0) {
return 'header'
}
}
</script>
<style>
.line {
width: 100%;
background-color: #ebeef5;
height: 1px;
transform: rotate(16deg);
}
.month {
margin-left: 110px;
}
.arg {
margin-left: 40px;
}
.el-table .warning {
background-color: #fef0f0;
}
.el-table .success {
background-color: #faf7f2;
}
.el-table .header {
background-color: #ecf5ff!important;
}
</style>
